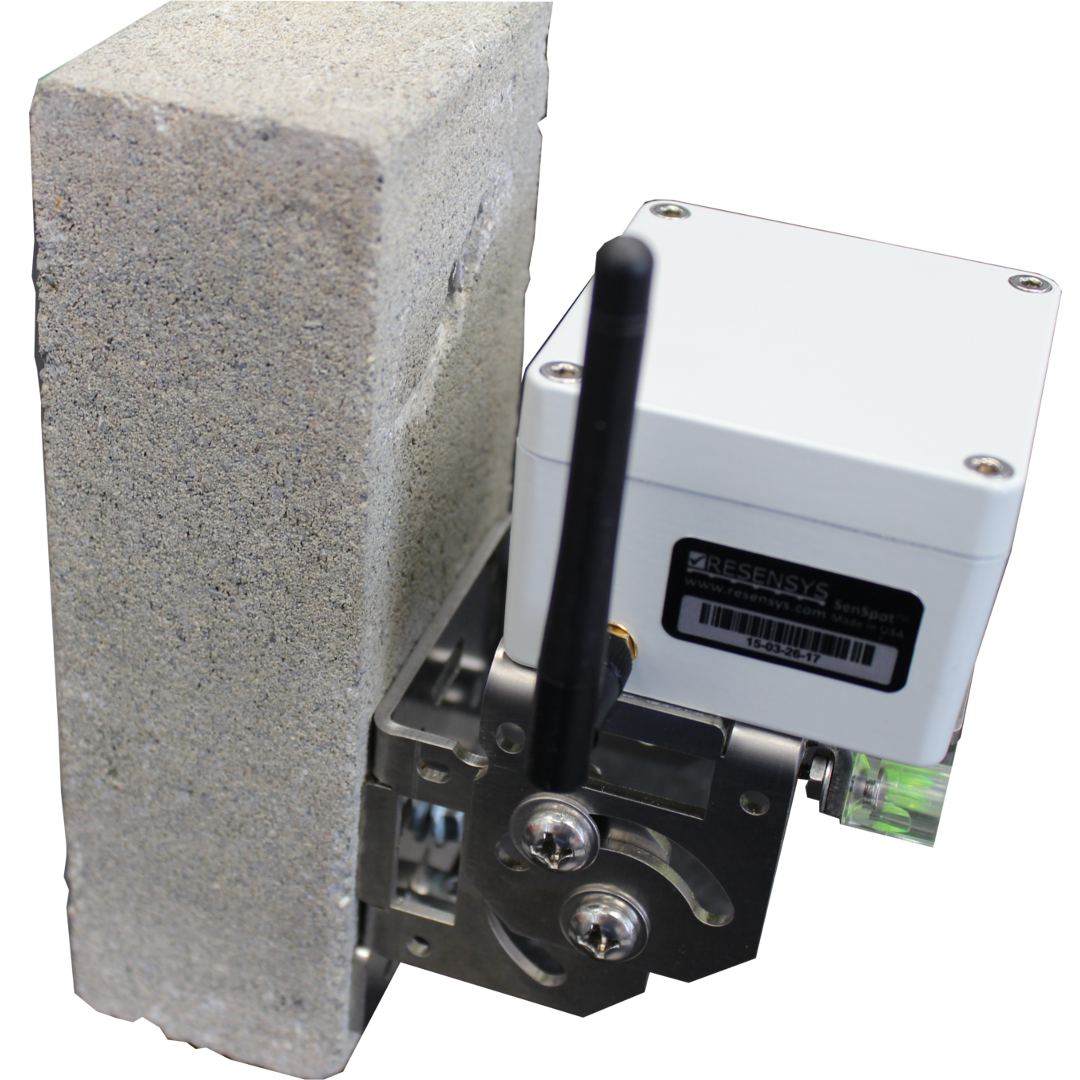

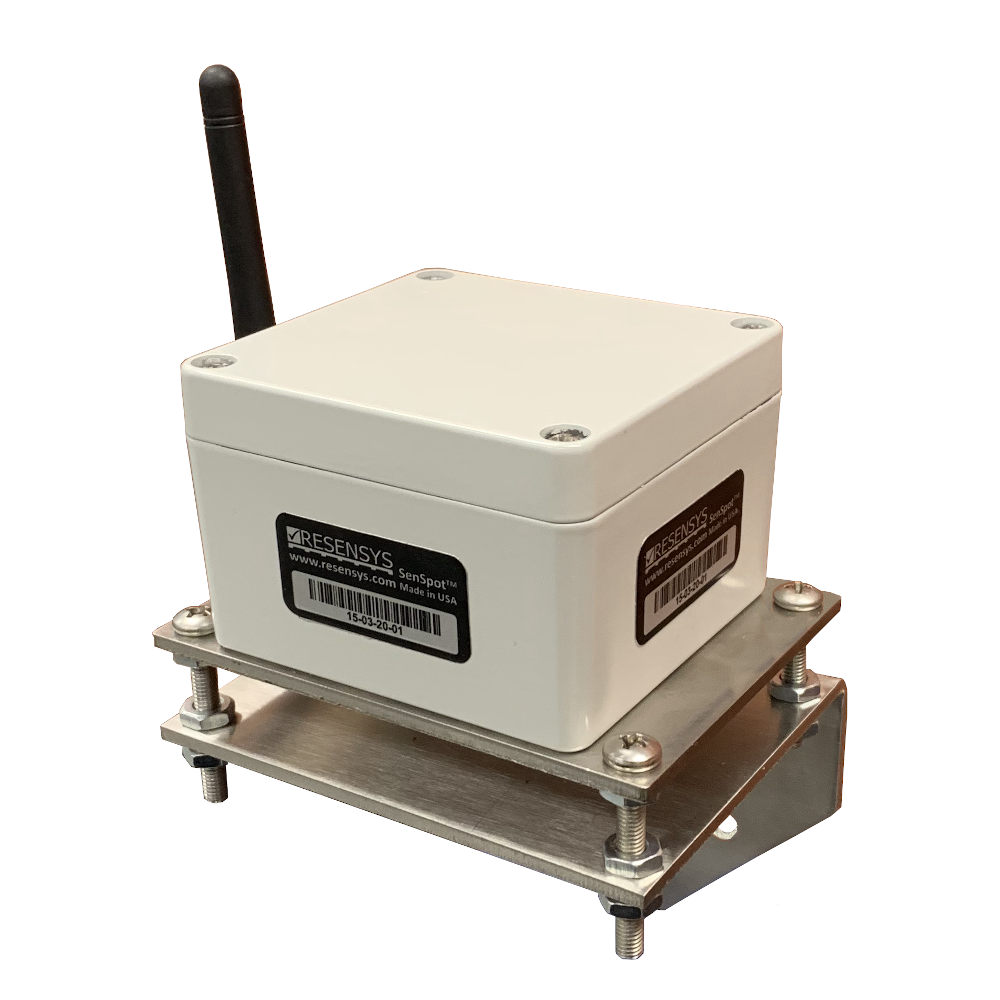

Wireless Tilt/Inclination SenSpot™ Sensor

Description

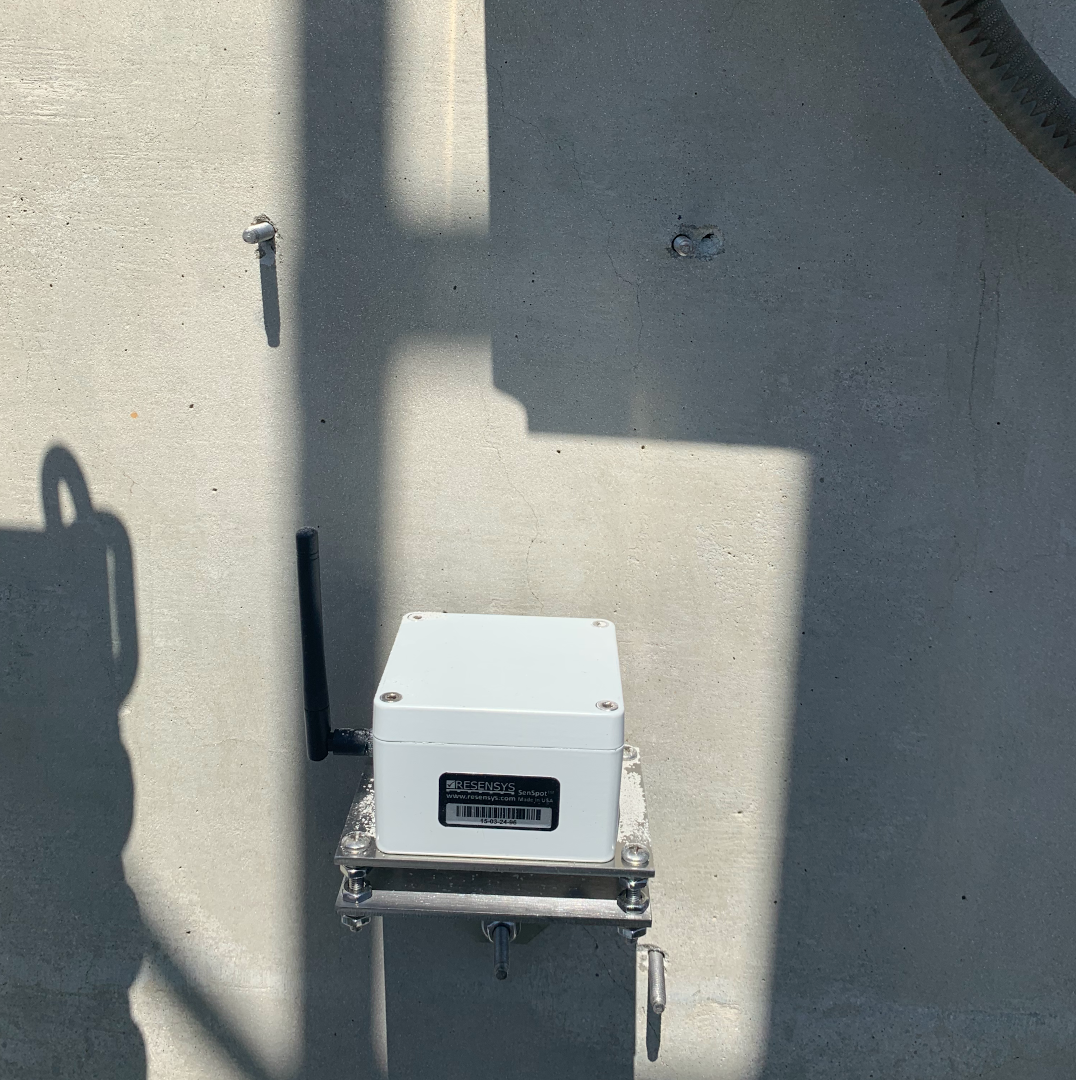

Using Resensys’s high precision tilt SenSpot sensors, movement, settling, deformation and abnormal tilting of bridge piers are detected at an early stage, before such issues become major problems or lead to safety compromise and/or road closure.

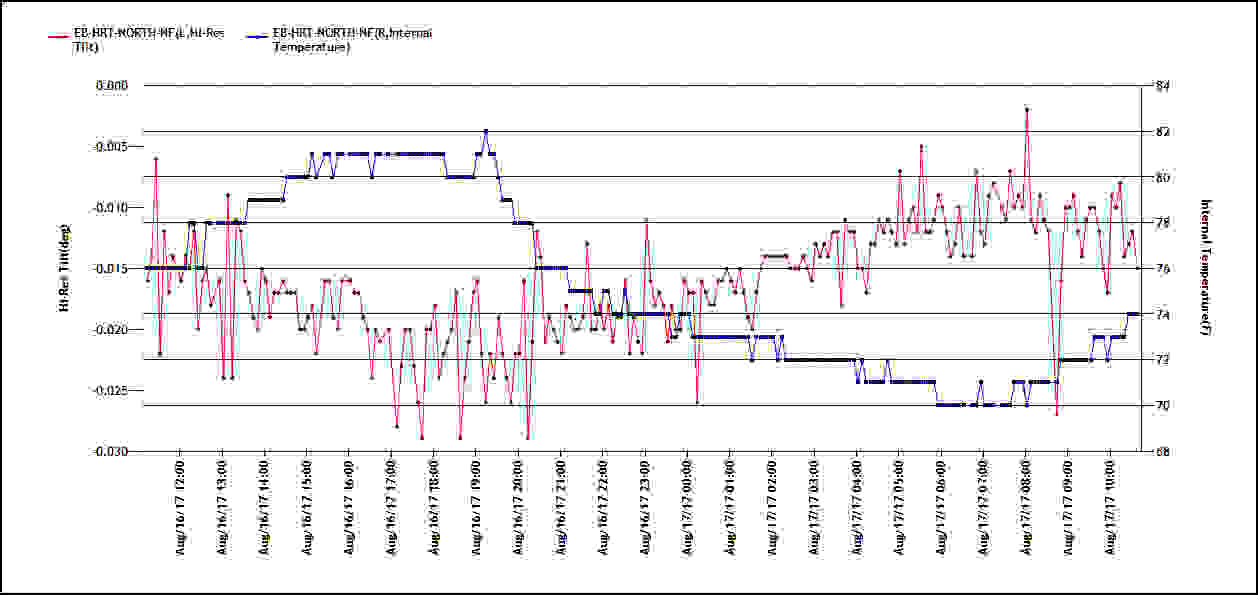

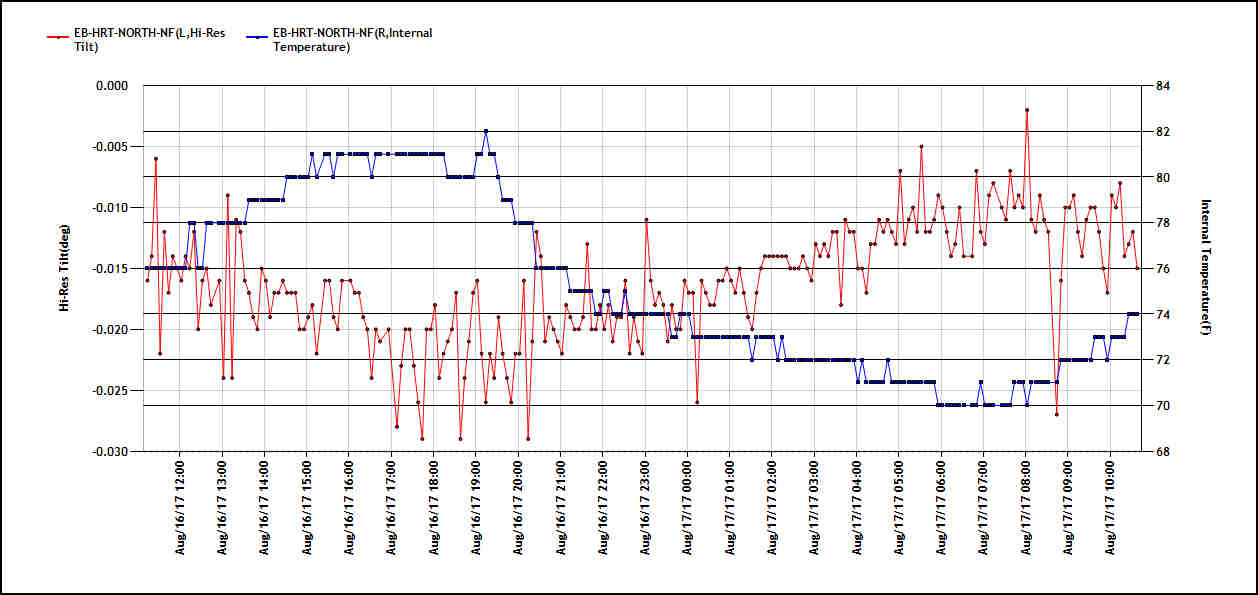

High precision tilt data helps calculate vertical/horizontal displacement of piers, pylons and spans.

SenSpot™ uses Resensys’s proprietary sensing, scheduling and ultra-low power syn-chronization technology. SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance during its entire service life. Tilt/Inclination SenSpot™ is A breakthrough tool for precise monitoring of tilt, inclination, settling, bending, deformation, and deflection. Using Resensys’s high precision tilt SenSpot sensors, movement, settling, deformation and abnormal tilting of bridge piers are detected at an early stage, before such issues become major problems or lead to safety compromise and/or road closure. High precision tilt data helps calculate vertical/horizontal displacement of piers, pylons and spans.

Features

• Long lifetime: (minimum expected life without battery replacement 10 years)
• Lightweight： about 180 g (6.3 oz.)

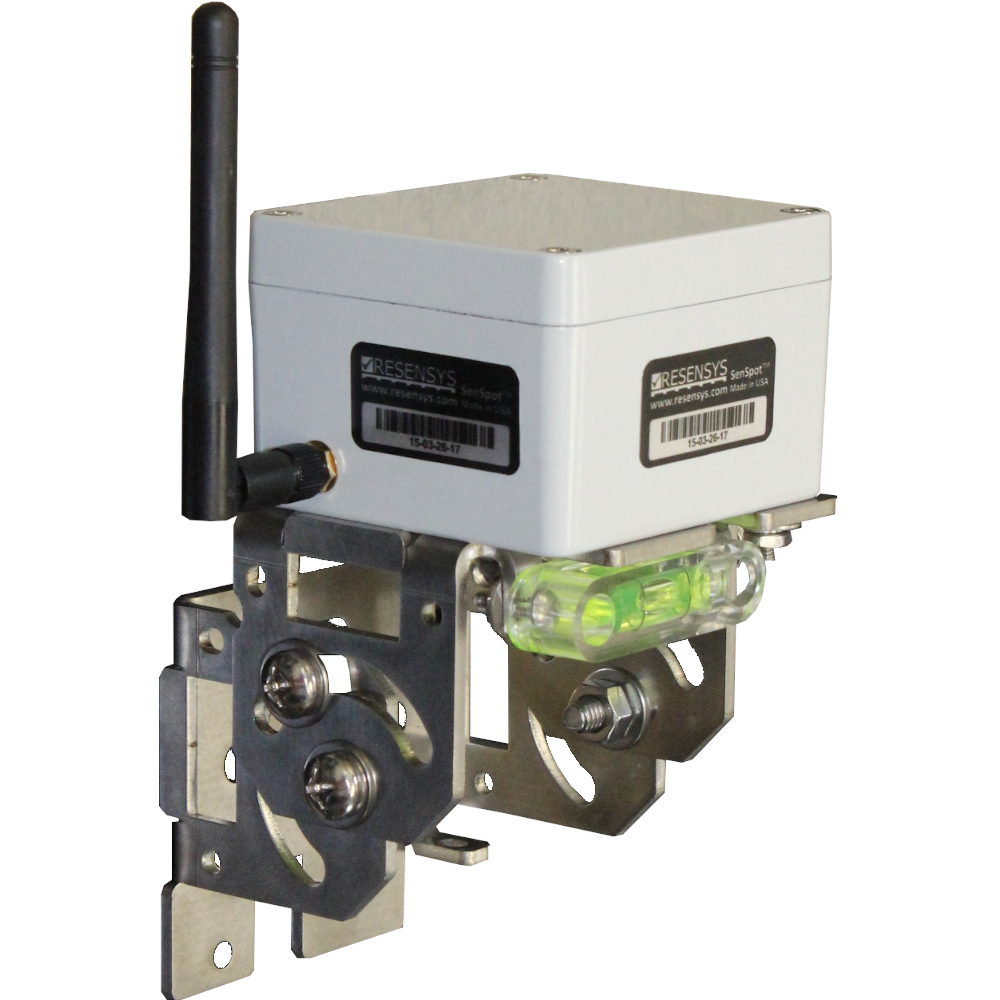

• Easy mounting:

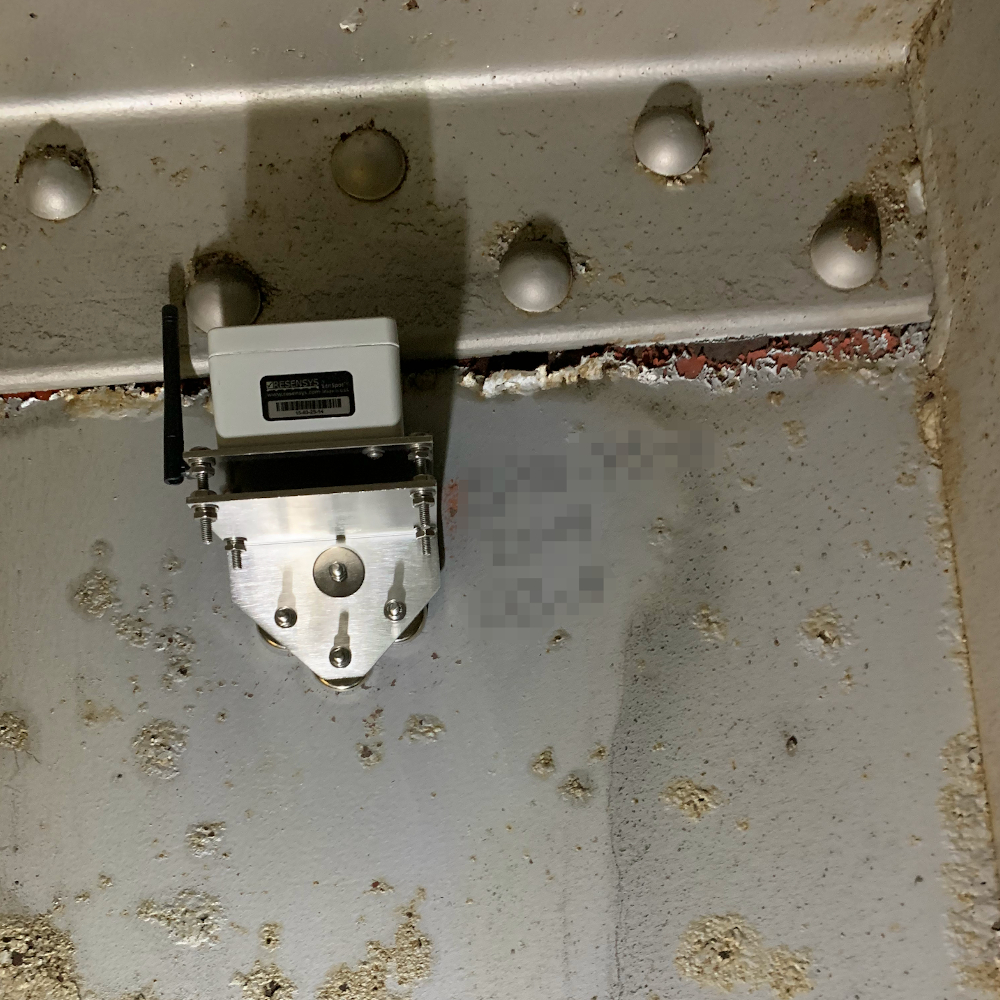

  • Self-adhesive, no drilling is required (e.g. steel)

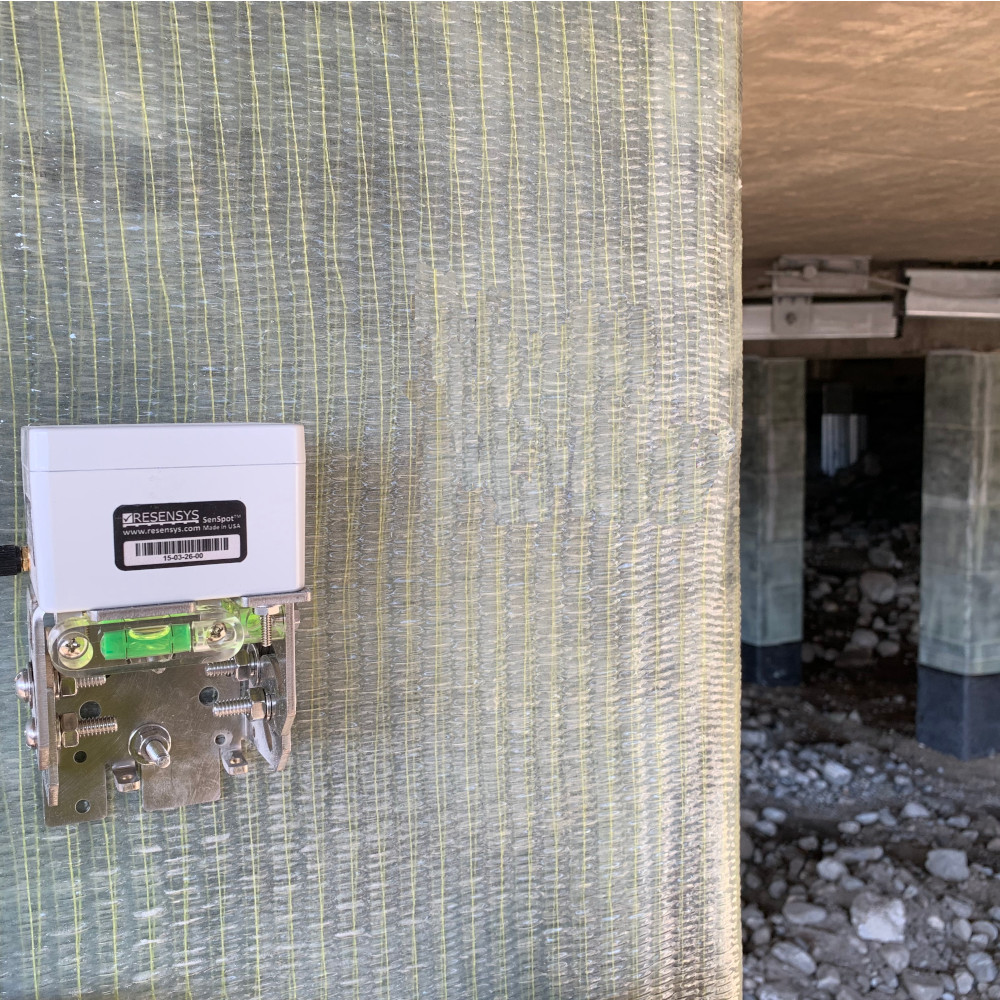

  • Flange-mount, drilling is required (e.g. concrete)
  • Quick installation, 1-2 minutes
• High accuracy:
  • Narrow Range HRT: ≤0.0003°
  • Mid-Range MRT: ≤0.001°
  • Regular tilt : 0.1°
• Wide working temperature: -40 to +65°C (-40 °F to +150°F)
• Long communication range: 1.0km free space
• Size:

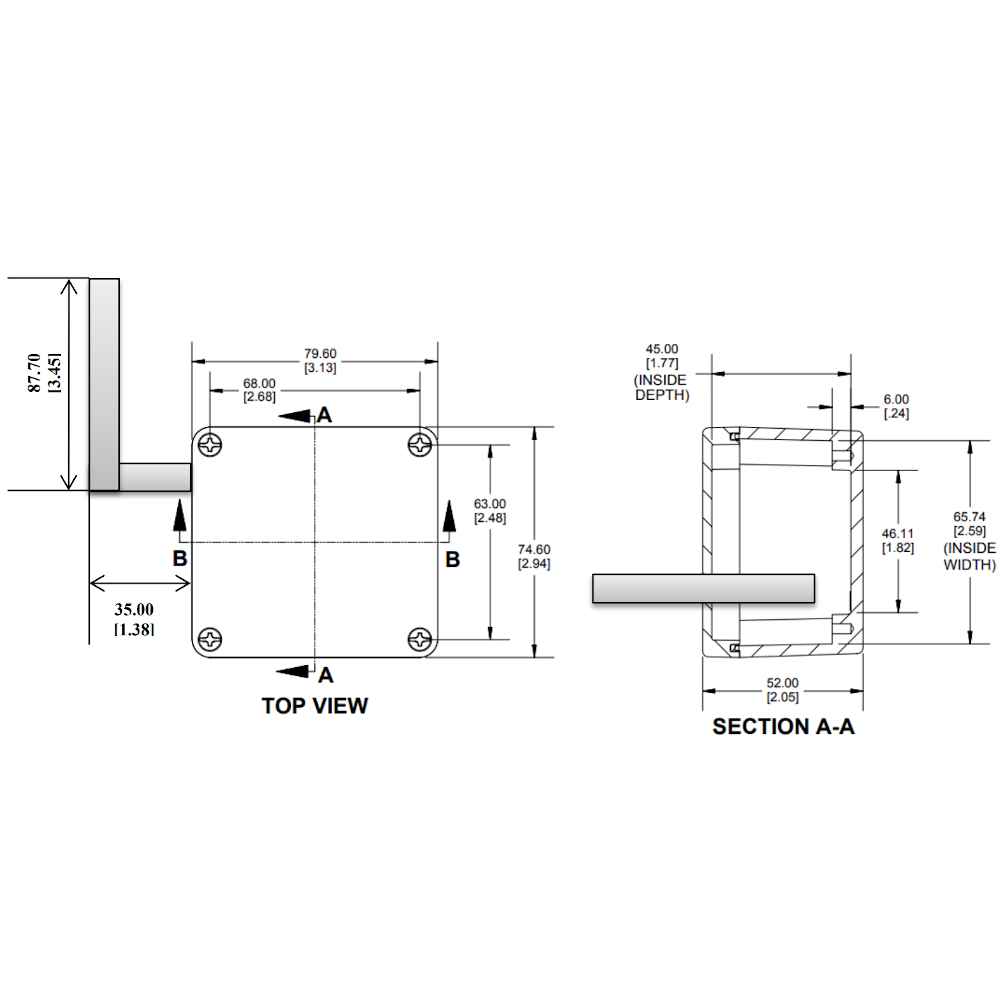

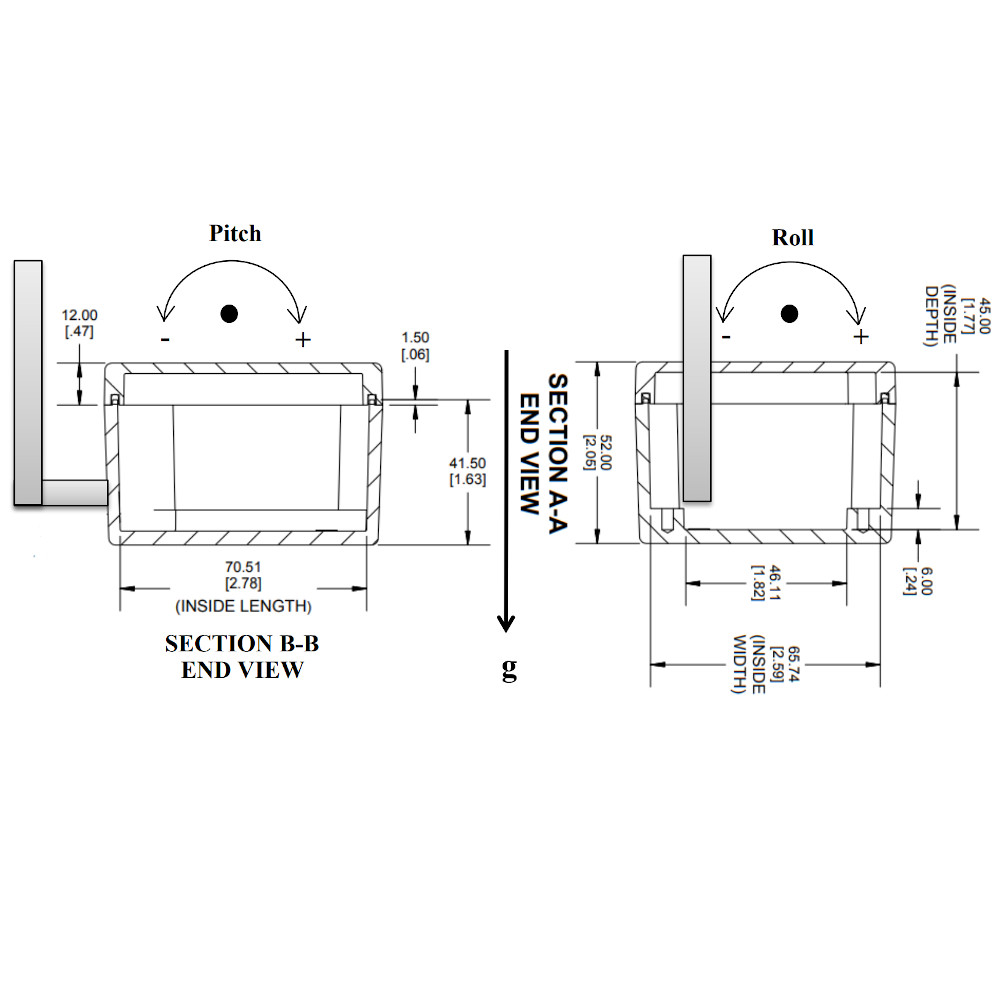

  • Wireless transmitter: 79.6mm (3.13”) x 74.6mm(2.94") x 52mm x (2.05”)
  • Assembly Dimension: 120.8mm (4.76”) x 96.6mm (3.8”) x 149.9mm (5.9”)
• Complementary sensing: temperature, battery voltage, etc.

Applications

• Monitoring deflection, bending, settling of piers, abutments at high precision (resolution 0.00016 degree or 0.5 arc seconds)
• Monitoring vertical/ horizontal displacement in spans, pylons, piers using analytical model
• Detecting change in tilt caused by settling, deformation, or permanent change in loading
• Detecting any over-tilting or unhealthy change in tilt that may affect overall safety of the structure.
