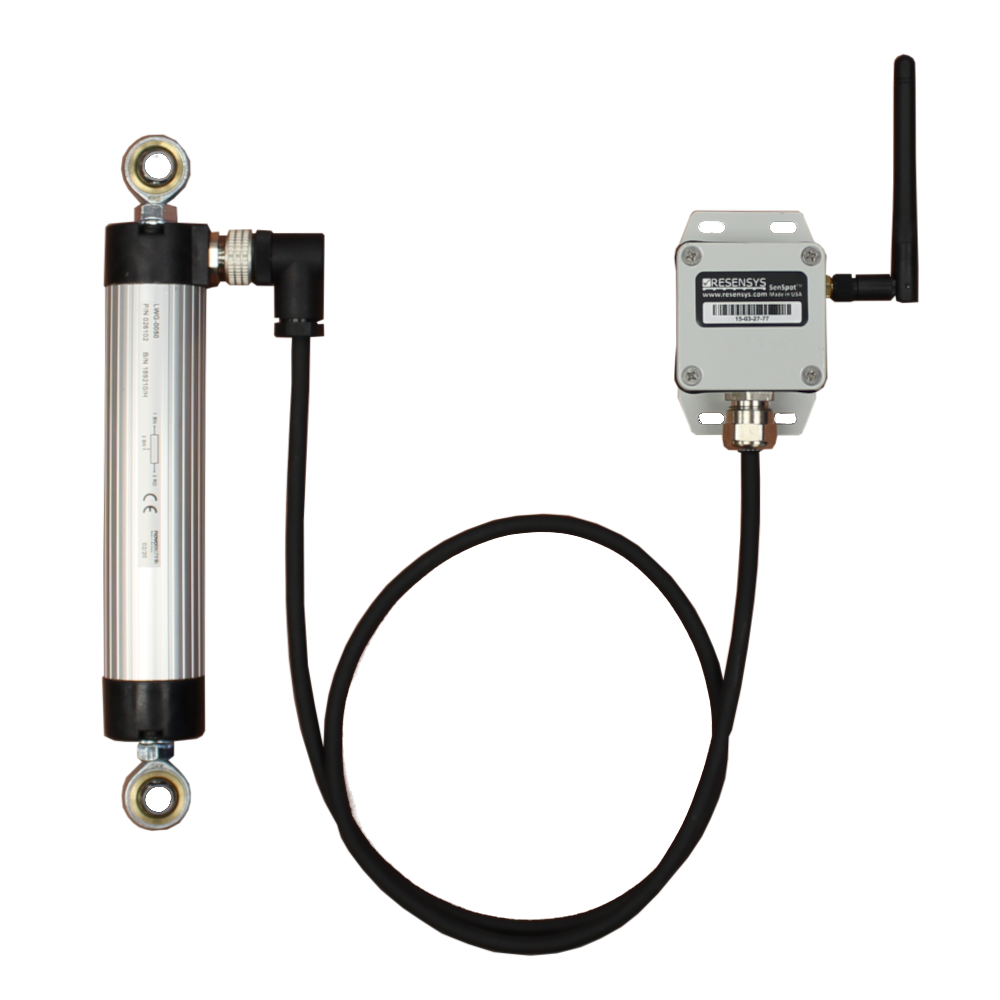

Wireless Displacement / Crack Meter SenSpot™

Description

Displacement / Crack Meter SenSpot™ provides an easy to install, scalable solution for distributed structural integrity monitoring. Resensys SenSpot™ technology offers a high performance method for large-scale sensing, wireless synchronization, and ultra-energy efficient wireless communication. SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance during its entire service life. Due to its small size and light weight, adhesive-mount SenSpot™ sensors can be applied easily to as many critical spots on a structure as needed with minimal installation effort. Displacement / Crack Meter SenSpot™ can be used for measuring the progress of the existing cracks in a structure. This device has a sliding element which moves with displacement of structure or growth of a crack.

10+ Years Battery Life

without battery replacement

High Precision

0.01 mm or 0.4 mil resolution

Easy Installation

self-adhesive(e.g. steel)/
flange-mount(e.g. concrete)

Wireless Structural Health Monitoring Solution

Long Wireless Range

1 km free space

Quick Testing Available

easy to reuse in other places

Wide Working Temperature

-40 to +65°C (-40 °F to +150°F)

Featured Applications

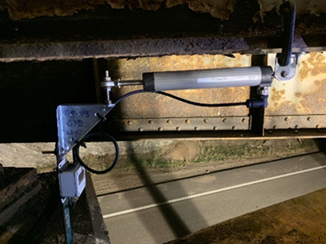

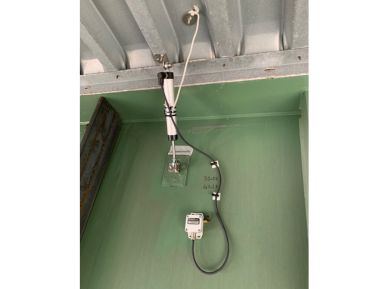

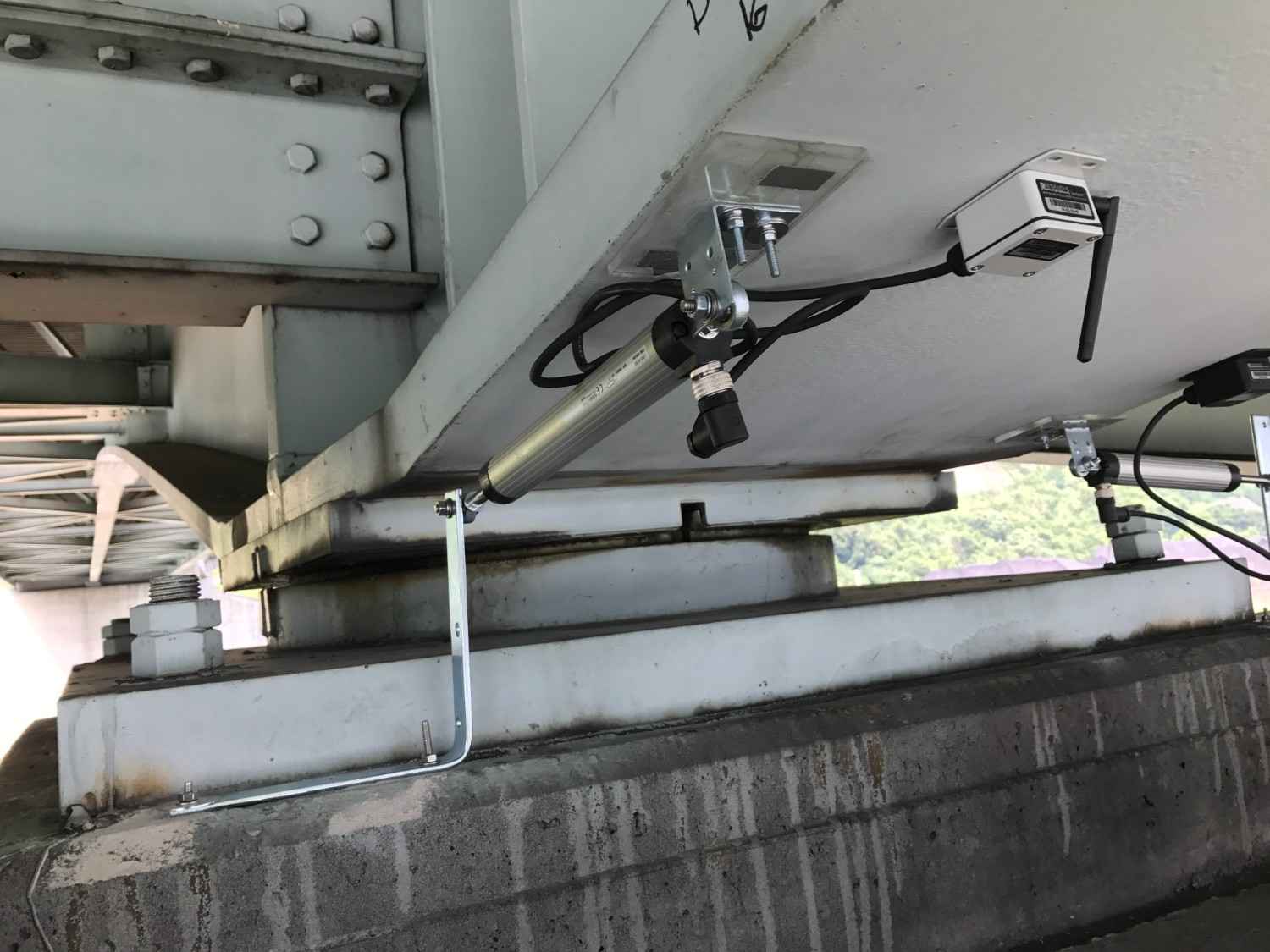

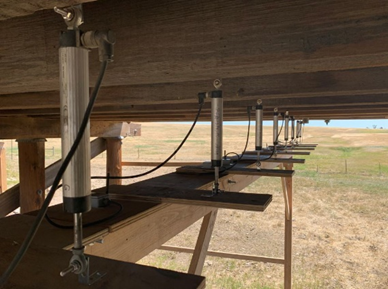

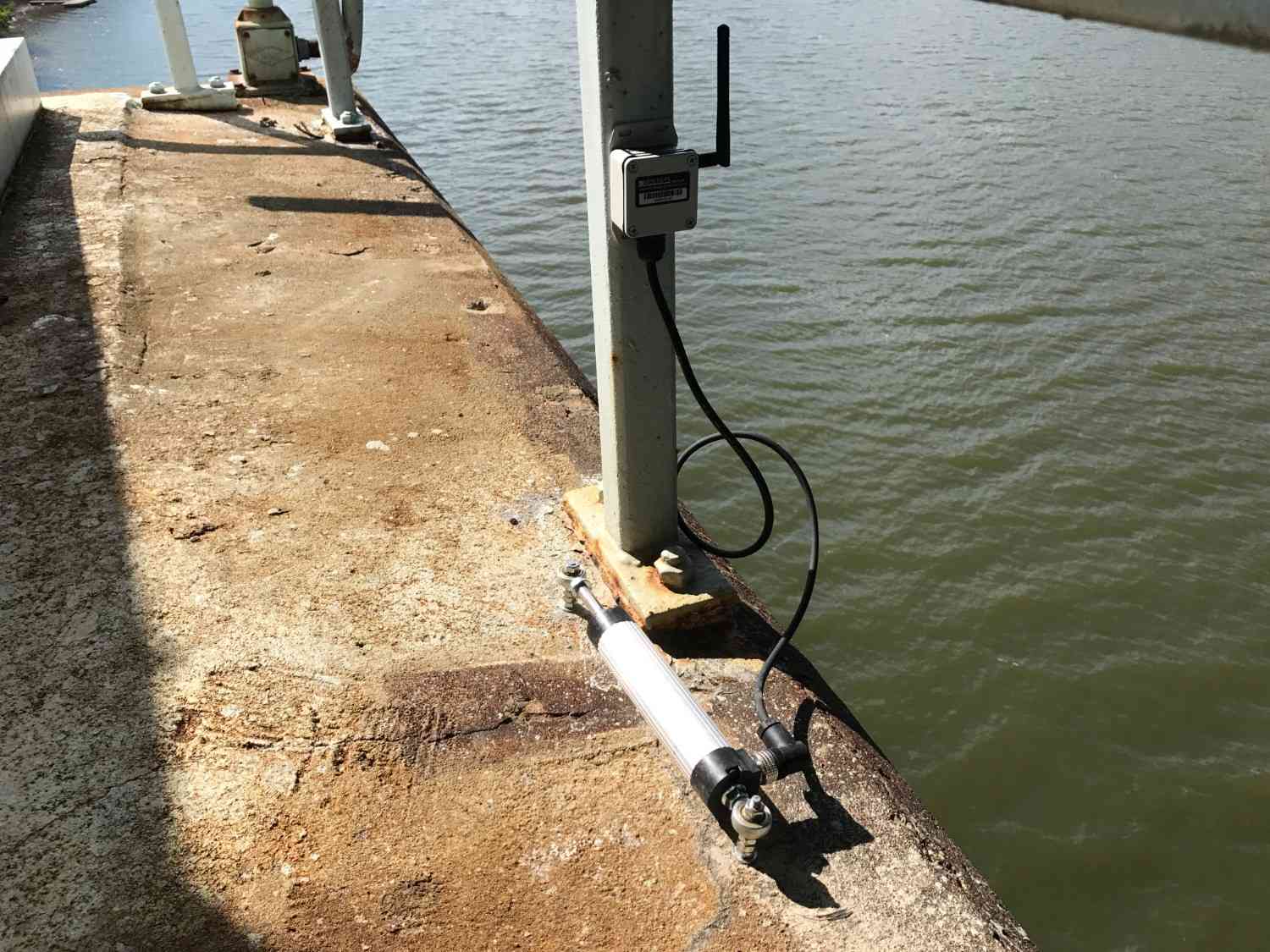

• Monitors expansion joints

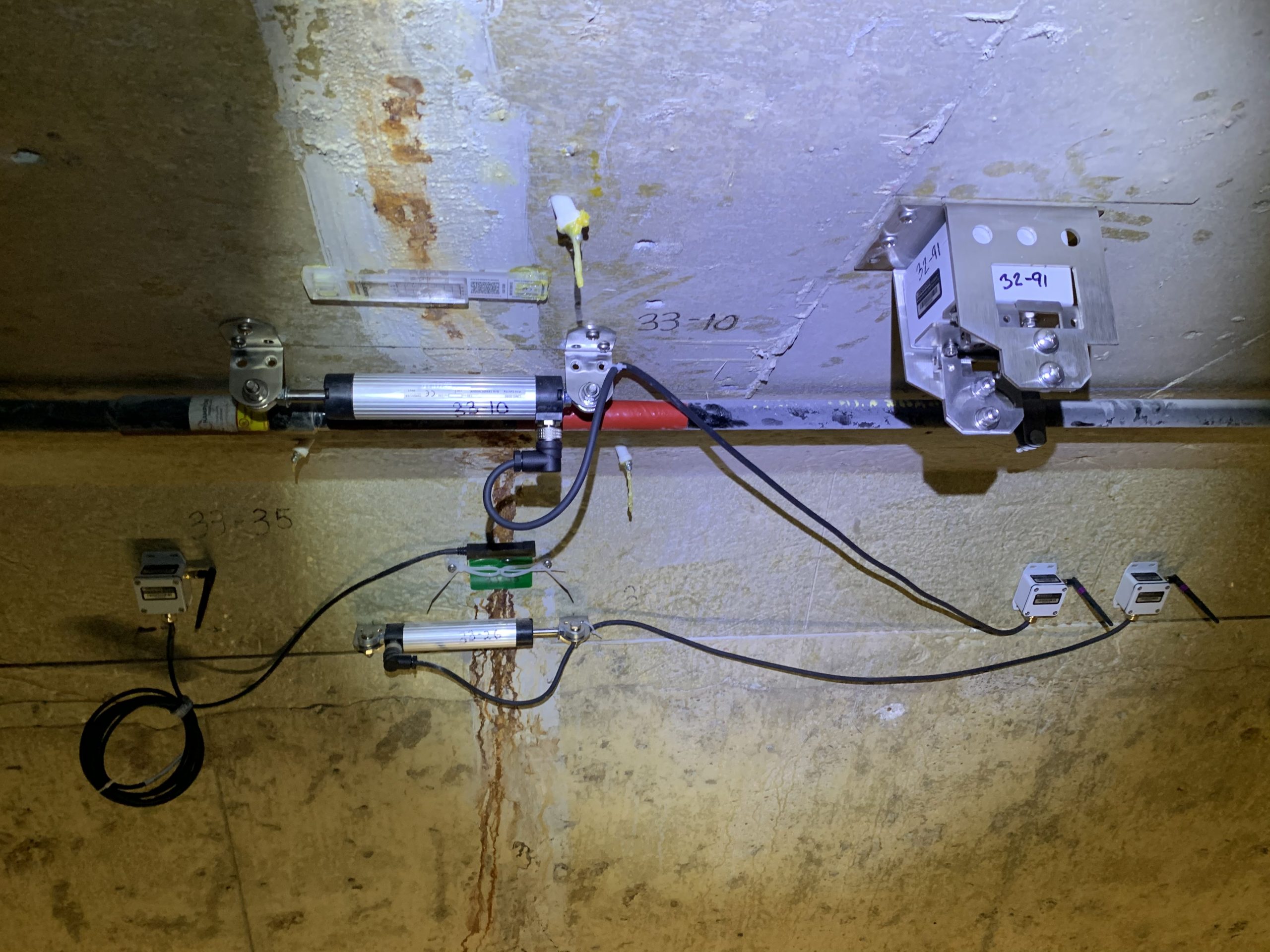

• Monitors activity / propagation of existing cracks
• Monitors movement

Specs & Details

• Long lifetime: minimum expected life without battery replacement 10 years
• Lightweight： about 147 g (5.19 oz.)
• Wireless transmitter: 120 g (4.23 oz.)
• Cable (1ft): 10 g (0.35oz.)
• Displacement sensing element: 100 g (3.5 oz.)
• Easy mounting:
    ○ Self-adhesive, no drilling is required (e.g. steel)
    ○ Flange-mount, drilling is required (e.g. concrete)
    ○ Quick installation, 1-2 minutes
• High accuracy: 0.01 mm or 0.4 mil resolution
• Wide working temperature: -40 to +65°C (-40 °F to +150°F)
• Long communication range: 1.0km free space
• Small size:
    ○ Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 34mm (1.34”)
    ○ Crack Meter Sensor: 79/104/129/154mm (1/2/3/4”) x 22mm (0.9”) x 22mm (0.9”)
• Complementary data collected: temperature, battery voltage, etc.
